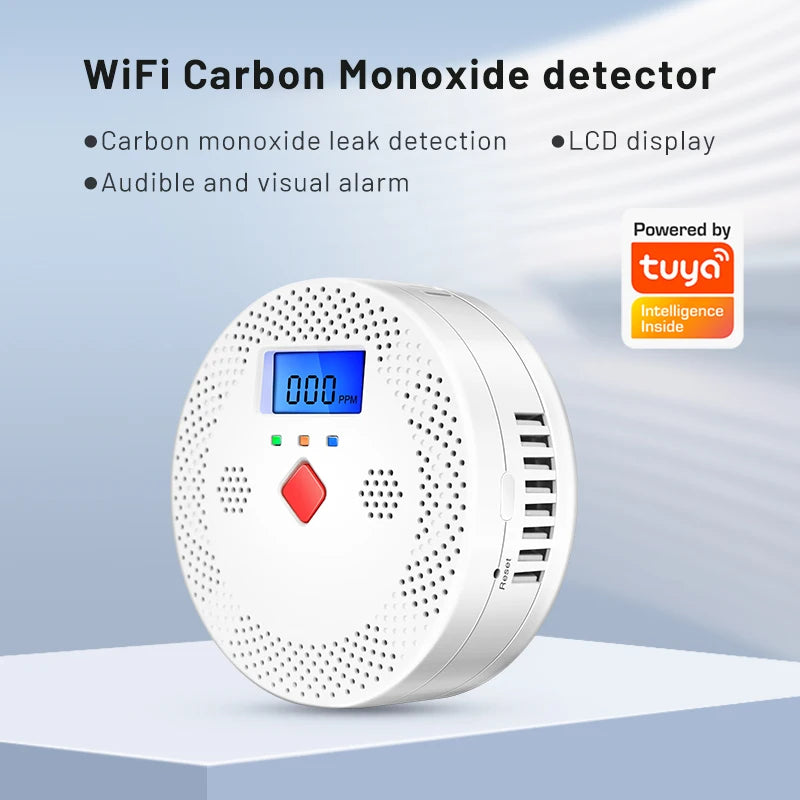

Tuya WiFi Smart Carbon Monoxide Detector Alarm 85dB Sound Warning LCD Digital Display Home Indoor Real-Time CO Monitor
Tuya WiFi Smart Carbon Monoxide Detector Alarm 85dB Sound Warning LCD Digital Display Home Indoor Real-Time CO Monitor
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: DYGSM
Certification: CE,RoHS
Choice: yes
High-concerned chemical: none
Origin: Mainland China
Smart home platform: alexa,Tuya,Google Assistant
Type: Carbon Monoxide Detectors
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
• Smart Home Integration :The Tuya WiFi Smart Carbon Monoxide Detector is compatible with the Tuya smart home platform, allowing for seamless integration and control from anywhere in your home.
• 24/7 Monitoring :This device provides 24/7 monitoring of carbon monoxide levels, ensuring your indoor environment is safe and secure at all times.
• 85dB Alarm :Equipped with an 85dB alarm, this detector will alert you immediately to any dangerous levels of carbon monoxide, providing early warning for quick action.
• LCD Digital Display :The LCD digital display makes it easy to read and understand the carbon monoxide levels in your home, providing real-time information at your fingertips.
• RoHS Certified :With RoHS certification, this carbon monoxide detector meets high standards of safety and quality, giving you peace of mind in its use.
Tuya WiFi CO detector which can protect you and your family to avoid poisoning of carbon monoxide
Noted:WIFI network only supports 2.4G, not 5G.
Reminder：
The installation location should be in a stable network environment.
For the first time connecting to the internet, try to use a new battery.
When connecting to the internet, turn on the Bluetooth of your phone.
Product Features:
【Wifi + Bluetooth Dual Mode】Connect to the network faster. The connection network speed is 2 times faster than only Wifi. (Bluetooth is only used for network signal connection, Bluetooth cannot be used alone. WIFI+Bluetooth is more stable).
【Loud Alarm】When a dangerous level of carbon monoxide is detected, the red LED will flash and emit a loud alarm that can be heard even through walls, reminding you to make your defense as soon as possible to avoid danger.
【Remote monitoring】The Carbon Monoxided concentration displaying (PPM) ,can be observed in real time through the mobile APP. No matter how far away you are from home, you can make your home smarter.
【Visible LED Display】3-digit display, when a carbon monoxide leak is detected, the current value will be displayed according to the concentration , an intuitive display for greater peace of mind.
【Easy Installation】Powered by 2 AAA batteries (not included), slid to remove the back cover and replace the batteries. The back is equipped with wall mounting holes, can be fixed by the included screws, safe and fast.
【Low Voltage Remind]]When the battery level is low, it will automatically remind you to change batteries, never worry about running out of battery.
④ When the CO concentration in the environment exceeds the set value (128ppm), the red indicator light blinks, and a continuous beeping sound until the screen shows "0 ppm" then stop alarm ( APP receives alarm message if network connected success).
⑤ For user testing, you can lit a cigarette and let smoke into the product. After a moment, the screen will show the CO concentration value. If it exceeds the set value, an alarm will sound, and the red indicator light will flash simultaneously.
Specifications:
Input voltage:DC3V LR6-AA * 2
Quiescent Current:≤55uA
Alarm Current:≤160mA
Low power undervoltage:≤2.4V
WiFi: 802.11 b/g/n
Detectable Gas:Carbon Monoxide (CO)
Alarm set value:128ppm (± 50ppm)
Alarm Sound:≥ 70dB/1M
Alarm Mode:Sound and flash Alarm
Installation Method:Wall Mounting
Working Temperature:-10℃to 55℃
Working Humidity:Up to 95% RH
Alarm mode: mobile phone app notification push(Smart Life/Tuya Smart)
Size:90*90*33mm
Product package included:
1XWiFi CO Sensor((Not include battery)
1xsticker
1xUser manual
Product Image:
WiFi Smart Carbon Monoxide Alarm QA
1. Basic Product Questions
Q1: What gas does this WiFi smart carbon monoxide alarm detect?
A: It specially detects carbon monoxide (CO), a colorless, odorless toxic gas produced by incomplete combustion of coal, gas, charcoal, vehicle exhaust and firewood. It cannot detect natural gas or liquefied gas alone。
Q2: What are the differences from ordinary carbon monoxide alarms?
A: 1. WiFi-connected for real-time concentration monitoring and remote alarm push on mobile phones;
2. Historical concentration curve records available on APP;
3. Remote silence and fault reminder functions;
4. Compatible with smart home linkage (exhaust fans, gas solenoid valves, etc.);
Q3: Where can it be installed?
A: Bedrooms, living rooms, kitchens, garages, boiler rooms, RVs, coal-fired rooms and basements, beside gas water heaters. Do NOT install it where cooking fumes blow directly, highly humid bathrooms or outdoors under direct sunlight.
Q4: What is the proper installation height?
A: Carbon monoxide is slightly lighter than air. Mount it within 30cm below the ceiling, 2.2–2.7 meters above the ground on walls. Keep it away from doors, windows and range hood outlets.
2. WiFi Connection & APP Functions
Q5: Which WiFi bands are supported, 2.4G or 5G?
A: Only 2.4GHz WiFi is supported; 5G WiFi is incompatible. The router must enable DHCP, and hidden WiFi SSID is not allowed.
Q6: What causes pairing failure?
A: 1. Connected to 5G network;
2. WiFi password contains special symbols;
3. Weak WiFi signal due to long distance from the router;
4. The device is not in fast pairing mode;
5. Router firewall blocks device access;
6. Unstable voltage causes device restart.
Q7: Can I receive alarm notifications when I’m away from home?
A: Yes. Once the connected device detects excessive CO concentration, alarm alerts will be pushed to your mobile APP for real-time remote reminders.
Q8: What data can be viewed on the APP?
A: Real-time CO concentration value, device online status, battery level, historical alarm logs, fault records and remaining sensor service life.
Q9: Can multiple family members share one device?
A: Yes. The primary account can share the device with family members, so everyone receives alarm alerts simultaneously.
Q10: Will the local alarm still work when the network is disconnected?
A: Yes. Disconnection only disables remote push notifications. The device will still trigger local loud beeps and red flashing lights when CO exceeds the standard. Alarm logs will sync automatically once the network recovers.
